FLOOR MONITORS ALPHA plus BETA-GAMMA

Model # ABFM-5 Pancake Array GM

Model # ABFM-6 Scintillator

Model # ABFM-7 Gas Flow

FEATURES: SEPARATES ALPHA FROM BETA-GAMMA IN ABFM-6 AND ABFM-7 LARGE FACE 144 square inches (925 cm2) on ABFM6 and ABFM7 SCINTILLATION, GAS FLOW, or GM DETECTOR FAST AND SENSITIVE ANALOG AND DIGITAL READOUT OUTPUT FOR RECORDER RUGGED BUILT-IN SPEAKER CAN BE DECONTAMINATED GENERAL DESCRIPTION: Alpha plus Beta Gamma Floor Monitors, Models ABFM-5, 6, & 7 utilize alpha-beta-gamma sensitive detectors coupled to appropriate electronics. An electronic sorter accepts and displays alpha counts only or alphas plus beta-gamma, or beta-gamma only. Windows are protected by a frame and grid which may be easily removed for decontamination purposes. The very large face detectors achieve, as far as we know, the fastest most sensitive floor monitoring system currently available.

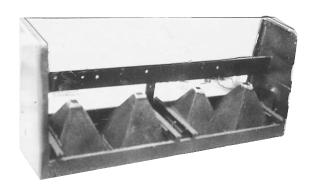

Figure 1: ABFM-Series

SPECIFICATIONS: Three additions to Technical Associates Floor Monitor Group.

MODEL#

• ABFM-5:
  12 large window thin form GM detectors, 29 sq. inches coverage in 24 inch swath. Window 1.5-2 mg/cm². Sees alpha plus all common betas except H-3. Adjustable height above floor. The ABFM-5 sees all alpha beta and gamma together. It does not sort.


• ABFM-6:
  4 PM tubes collect information from 144 sq. inches of plastic phosphor protected by thin light-tight easily replaceable window plus grille. Window is less than 1 mg/cm². Sees alphas plus all common betas except H-3. Switch selectable: alpha only or beta-gamma only or all. Digital and analog readout. Adjustable height above floor. Output for recorder.


• ABFM-7:
  144 sq. inches thin window gas flow dual detector. Window is less than 1 mg/cm². Sees alphas and all common betas except H-3. Also sees X-rays (eg H³ bremstrahlung) and gammas down to 5 KeV but with less efficiency. Switch selectable for alpha or beta-gamma or all. Also has pulse height analyzer. Analog plus digital response. Adjustable height above floor. Output for recorder. Includes gas supply (P-10).
