HIGH RANGE UNDERWATER MONITOR
Model # CP-MU-D1 (includes DMU-1 probe to 106R/hr)
Model # CP-MU-D1000 (includes DMU-1000 probe to 103R/hr)
Model # CP7-MU-D1 (includes DMU-1 7 probe to 107R/hr)
FEATURES:
- FOUR LINEAR RANGES UP TO 1,000,000 R/hr with DMU-1
- COVERS 100 mR/hr to 1,000 R/hr with DMU-1000
- WATERPROOFED DETECTOR SYSTEM
- STABLE AND DEPENDABLE
- FAST RESPONSE
- LIGHTWEIGHT AND PORTABLE
- 6 AA CELL
- CP - MU -7 READS UP TO 107 R/hr
- 2-WAY SERIAL PORT-STANDARD
|
 CP-MU-D1
|
APPLICATION: Because of the extremely
high range capability of this instrument and the waterproof construction
of the ion chamber detection system, underwater monitoring (and in
hot cell monitoring) of Reactor Spent Fuel Elements, Reactor components
and doserate measurements of irradiated objects can now be made easily
and at the ranges called for at moderate cost.
GENERAL DESCRIPTION: The Underwater
Monitor consists of a lightweight single 6 AA cell operated, solid state
and MOSFET driven electronic package (Model CP-MU) coupled to a
High Range DMU-1 or Mid Range DMU-1000 Detector System consisting
of 60 feet of special low noise cable with a waterproof coupling to
a 8'' long x 1/2'' diameter aluminum tube containing an ion chamber
(in Model DMU-1) or 7-1/2'' long x 5-3/4'' diameter aluminum ion
chamber (in Model DMU-1000). A ``handle'' consisting of 8 foot
sections of free draining 5/8'' stainless steel tubing is available
as an option. Up to 16 feet may be used with DMU-1 in any position.
Twenty-four feet or more may be used vertically with DMU-1 or DMU-1000
chamber downward.
Four linear ranges on the electronic package provide
readings up to 1,000,000 R/hr. DMU-1000 and DMU-1 probes, when used
with CP-MU readout, extend the sensitivity of instrument so that levels
of 100 mR/hr to 1 million R/hr can be read. Both the high range and
low range probe can be used with the same readout. The scale multiplier
for the low range probe is 1 R/hr and for the high range probe is
1 kR/hr. A ``set'' position on the Range Switch permits the meter
to be adjusted to read zero by the zero adjust knob.
Calibration is fully adjustable.
The instrument case is made of drawn aluminum
with epoxy lettering for easy decontamination. Case openings are
sealed by gasket or screw closure for protection of electronics.
A reliable MOSFET electrometer circuit and improved
solid state electronics assure long uninterrupted service. Mechanical
switching of the high impedance circuit has been eliminated.
Protection against
influence by magnetic fields up to 60 gauss has been built into the
instrument. A top handle and four rubber feet achieve a more stable
base with no loss of display visibility.
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
HIGH RANGE UNDERWATER MONITOR
Model # CP-MU-D1 (includes DMU-1 probe to 106R/hr)
Model # CP-MU-D1000 (includes DMU-1 probe to 10003R/hr)
Model # CP7-MU-D1 (includes DMU-1 7 probe to 10007R/hr)
SPECIFICATIONS:
- CP-MU Ranges:
| DMU-1000 |
0.1 R/hr |
to 1000.0 R/hr |
|---|
| DMU-1 |
0.1 KR/hr |
to 1000.0 KR/hr |
|---|
- CP-MU-7 Ranges:
| DMU-1000 |
1R/hr |
to 10,000 R/hr |
|---|
| DMU-1 |
1KR/hr |
to 107 R/hr |
|---|
- Model Numbers:
CP-MU: CP-MU-D1 electronic
package plus DMU-1 Probe with 60-foot cable.
CP-MU-D1000: Same electronics with DMU-1000 Probe and 60-foot
cable.
For full 100 mR/hr to 106 R/hr coverage,specify
CP-MU-D1 plus DMU-1000 probe
- Accuracy: ± 15% F.S.
- Calibration: Cs-137 Gamma (Co-60 Optional)
- Time Constant: 2 seconds fast, 12 seconds slow
- Temperature Range: -30°C
to +57°C
- Drift: At room temperature - less than 0.5%
per °C
- Battery: 6 "AA" cells, carbon-zinc, alkaline,
Li or nimh type batteries can be interchanged without
instrument adjustments. Use alkaline batteries below 0°C
- Battery Check: Pushbutton with
LED indicator
- Range Adjusts: 4 internal screwdriver
adjusts
- Zero Adjust: Knob
- MOSFET Protection Circuit: Prevents damage
to MOSFET when coupling or decoupling detector system.
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
HIGH RANGE UNDERWATER MONITOR
Model # CP-MU-D1 (includes DMU-1 probe to 106R/hr)
Model # CP-MU-D1000 (includes DMU-1 probe to 10003R/hr)
Model # CP7-MU-D1 (includes DMU-1 7 probe to 10007R/hr)
SPECIFICATIONS (Continued):
- Serial Port: 2 way RS-232 communications for data collection or remote computer readout.
- Dimensions: 6-1/2''long x 3-1/2'' x 9'' tall including handle
- Weight: electronics 28 oz.
- Detector System: DMU-1 - Sealed Air ion chamber 0.5" dia x 8" long. Internal 1.0 cc
- Detector System: DMU-1000 - Sealed Air ion chamber 5.75" dia x 8" long. Internal 1000 cc
- Readout: LCD 8 digits.
- Indicator Lamp: Green LED 1 pulse/sec R/hr. Red Over-range Indicator
- Electrometer: Solid State MOSFET input
- Electronics A-D converter LCD drivers
OPTIONS:
Readout in Si units: Sv and Sv/h
WIN-W -- RS-232 Software
Cable length 100ft (30 meters)
Alarm settable visual alarm LED
Lighter weight chamber is MODEL # DMU-1000LW, non-submersible
probe and optional wand/handle.

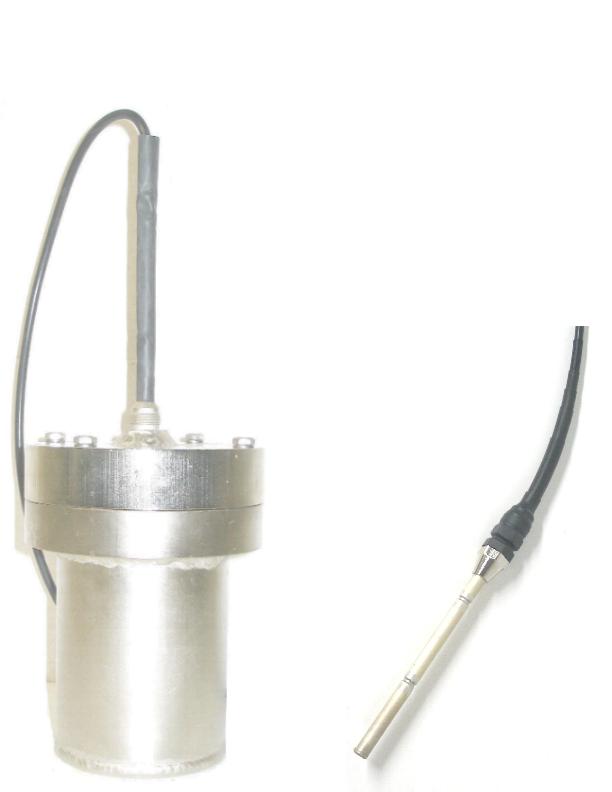

DMU-1000 & DMU-1
