IODINE AIR MONITOR

GAS AND PARTICULATE

MODEL # FM-7-ABNI

FEATURES: REAL TIME ALARM LINE OPERATED PORTABLE INTEGRATED EXPOSURE STANDARD FM-5/7 MODULES CAN DRAW AIR FROM HOOD, DUCT, ETC. QUICK CHANGE FILTER CARTRIDGE REGULATED AIR FLOW RS232 COMPUTER INTERFACE OPTIONAL DATA LOGGER APPLICATION: The FM-7-ABNI Air Monitor assures safety against airborne radioactivity contamination by means of constant check with alarm and record capability. It provides integrated exposure information and can provide hard copy via external printer or computer. It is a complete system but may be expanded per need with modules of the FM-5/7 series. The FM-7-ABNI is the more sensitive and versatile version of the broadly used long time standard, the FM-5-ABNI. It may be used to monitor stack effluent down to EPA levels as well as hoods or workplace air.

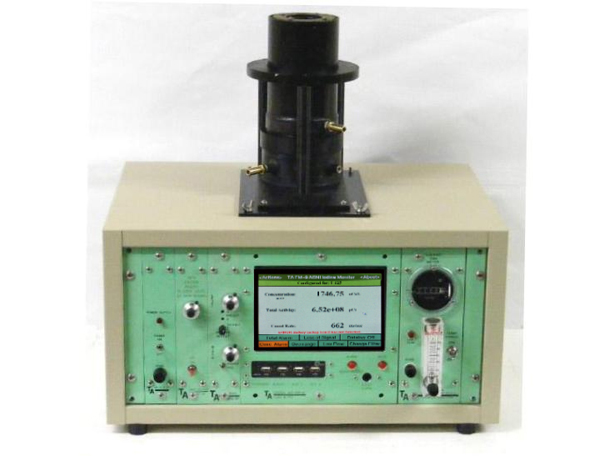

FM-7ABNI

DESCRIPTION: The FM-7-ABNI uses a standard charcoal filter in TA's unique quick change, no leak holder to trap any airborne Radio Iodine. The filter is under constant surveillance via a thin window scintillation detector. Air is drawn by a regulated pump through a three-foot inlet hose and exhausted via a flow meter through another three-foot hose. These may be extended to allow monitoring of hoods, glove boxes, stacks, etc. Time is recorded by an odometer type timer wired into the pump circuit. The unit is completely self-contained and portable. Complete with 10 filter cartridges.

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com

IODINE AIR MONITOR

GAS AND PARTICULATE

MODEL # FM-7-ABNI

SPECIFICATIONS:

• Sensitivity: Limit of sensitivity and (as Iodine 131) at 150 liters/minute air flow rate is 4 x 10^-13 µCi/cc integrated over an 8 hour period, or 8 x 10^-14 µCi/cc for a 40 hour period. This corresponds to 2 x 10^-10 µCi/ml minute exposure which is equal to 0.6% of the California Safety Code Title 17 and USNRC Title 10 limit for 40 hour weekly exposure to most hazardous beta and/or gamma emitter in absence of Ac 227.
• Detector: 2'' diameter probe with thin window, thin crystal, scintillation detector, Model PGS-3I for sensitivity to all iodines.
• Electronic Modules Include:]

  MVR-5R	Power and H.V. Bias Supply.
  FIL-7DP	Programmable Scaler.
  MGC-23	RS-232 Computer Interface (internal).
  MAC-5	Air Control Timer; Low Flow Alarm Flowmeter.
  MGA-5	Single Channel Analyzer.
  WIN-W	Optional Data Logger Software.

• Pump: Muffler and trap included. 115V 60Hz 2A. (230 V 50-60 Hz optional).
• Shielding: 1'' lead about sample and detector.
• Range:]1 x 10^-13 to 1 x 10^-7 µCi/cc or (Ci/m³.
• Alarm: Settable. 2000 Hz beeper and red flasher.
• Response Time: Settable 1 second to 40 hours.
• Readout: 6 digit LED for programmed information plus 6 digit LCD for integrated dose.
• Power: 115V, 50-60 Hz (230 V optional).
• Flow Rate: Regulated. Normally set at 70 liters/min.
• Filters: Includes package of 10 silver activated charcoal filter cartridges Model CF-1.
  Can also use membrane, paper or glass fiber filters for particulates only.
• Case: Electronics housed in enameled aluminum carrying case; handles included.
• Dimensions:
      Excluding pump and detector assembly: 17''W x 13''H x 13 1/2'' D.
      Detector assembly 5''W x 10''H x 6'' D.
      Pump assembly 8''W x 8''H x 14''D.
• Accessories: Filter: Free flowing silver activated charcoal disposable cartridge.
• Shipping Weight: 84lbs.
