PORTABLE IODINE MONITOR
Model # FR-PIB Total Airborne Activity
Model# FR-PII-PB Iodine Only
FEATURES:
- DETECTS 6 x 10-11 µCi/cc in 30 minutes
- BUILT-IN TIMER
- PORTABLE REAL TIME ALARM
- LINE OPERATED
- INTEGRATED EXPOSURE
- READS DIRECTLY IN µ Ci/cc
- CAN DRAW AIR FROM HOOD or ROOM
- QUICK CHANGE FILTER
- OPTIONAL: RS-232 COMPUTER AND/OR DATALOGGER INTERFACE
APPLICATION: The FR Series Air Monitor assures
Safety against airborne radioactivity contamination by means of constant
check with alarm and optional record capability. It provides integrated
exposure information. The FR Series is sensitive and versatile. Although
designed as an industrial workplace and hospital breathing air measurement
system, it may be used to monitor fume hoods and stack effluent down
to EPA levels.
DESCRIPTION: The FR-P Series uses standard
charcoal filters in TA's unique quick change, no leak holders to trap
any airborne radio-iodine. The filter is under constant surveillance
via a GM (FR-PIB) or scintillation (FR-PII)
detector. Air is drawn by a high volume pump through a flow meter
and exhausted through a short three-foot hose. An Inlet and outlet
hose may be attached to allow monitoring of hoods, glove boxes, stacks,
etc. Time is controlled by a timer wired into the pump circuit. The
unit is completely self-contained and portable. Complete with 10 filters. |

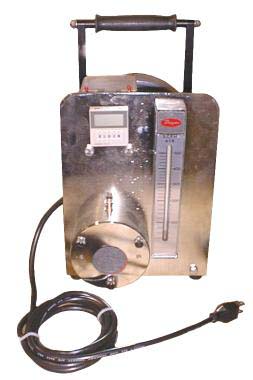

FR-PIB

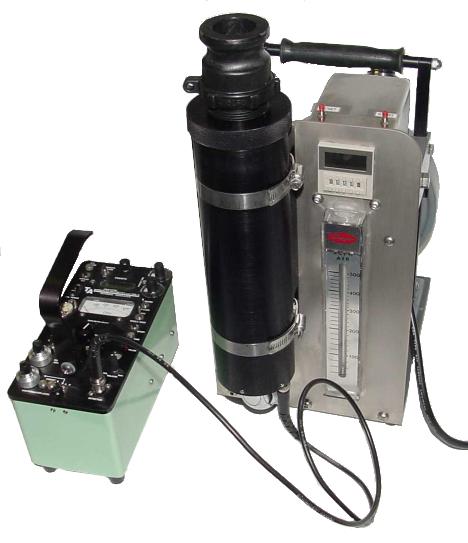

FR-PII
|
TATECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
$Revision: 1.4 $
PORTABLE IODINE MONITOR
Model # FR-PIB Total Airborne Activity
Model# FR-PII-PB Iodine Only
SPECIFICATIONS:
- Electronics: PRS-5 Scaler/Timer with Energy
Analyzer (See PRS-5 Spec Sheet or FIL-7 Programmable Scaler/Timer
Spec Sheet).
- Pump: High Flow Pump and Filter holder.
- Power: 115 V 50-60 Hz 2A (Optional:
230 V 50-60 Hz).
- Range: 1 x 10-13 to 1 x 10-7
µ Ci/cc (or Ci/m3) (Depends on count time)
- Readout: 6 Digit LCD - PRS-5, or 6 digit
LED - FIL-7D.
- Flow Rate: 227 liters/min
- Filters: Includes package of 10 charcoal
filter papers or 10 silver activated charcoal filter cartridges for
Model FR-PII-PB only. (Can also use membrane,
paper or glass fiber filters for particulates only.)
| Model: |
FR-PIB |
FR-PII |
FR-PII-PB |
|---|
| Portability: |
Portable |
Portable |
Semi-portable |
|---|
| Detector: |
T-1190 GM Tube |
PGS-3I |
PGS-3 |
|---|
| Size/Material: |
2`` dia. Pancake |
1`` x 0.8`` NaI(Tl) |
1`` x 1`` NaI(Tl) |
|---|
| Window: |
Mica 1.5 - 2.0 mg/cm2 |
Aluminum 5mil |
Aluminum 10-20mil |
|---|
| Detector: |
Beta, Gamma Removal |
Low + Middle |
Gamma |
|---|
| |
of Alpha Shield allows detection of Radon Alphas. |
Gamma. |
|
| Iodine: |
I-131 |
I-125, I-129, I-131 |
I-131 |
|---|
| Detects Particulates: |
Yes |
Optional |
Optional |
|---|
| Detects Aerosol & Reactive Gases*: |
Yes |
Yes |
Yes |
|---|
| Filter: |
Charcoal Filter Paper
2`` dia. |
Charcoal Cartridge
2.5`` dia. |
Charcoal Cartridge
2.5`` dia. |
|---|
| Iodine Sensitivity: (30 min) |
5 x 10-11 µCi/cc |
1 x 10-10 µCi/cc |
5 x 10-12 µCi/cc |
|---|
| Public Release: (1 x 10-10 µCi/cc) |
1/2 x Public Release |
Public Release |
1/20 x Public Release |
|---|
| Weights: |
|
|
|
|---|
| Electronics: |
4 lbs |
4 lbs |
4 lbs |
|---|
| Detector+Filter: |
2 lbs |
4 lbs |
15 lbs |
|---|
| Pump: |
20 lbs |
20 lbs |
20 lbs |
|---|
| Shielding: |
None |
None |
1/2`` lead - Pb |
|---|
*Detects all airborne activity except
Noble Gases, H-3,C-14,S-35,Fe-55 |
|
|
|
|---|
| Electronics: |
PRS-5 |
PRS-5 |
FIL-7D |
|---|
- Case: Electronics housed in enameled aluminum
housing; handle included.
- Dimensions:
Excluding pump and detector assembly: 17"W x 13"H x 13 1/2"D.
Detector Assembly: 5"W x 10"H x 6"D.
Pump Assembly: 11"W x 13"H x 11"D.
- Shipping Weight: 84 lbs.
- Options:
Shielding - Detector shielding.
Alarm - Settable 2000 Hz beeper and red flasher.
Interface - RS-232 (Model MCC-23).
Serial Printer.
TATECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
$Revision: 1.4 $
PORTABLE IODINE MONITOR
Model # FR-PIB Total Airborne Activity
Model# FR-PII-PB Iodine Only
Easy Procedure for Use:
Flow-rate and air sample time have been preset (user can change
those if desired).
- Turn on instrument.
- Put in clean filter.
- Make Test Count (pump Off).
- Turn on Pump and start counter.
- Come back in 30 minutes. (pump and counter have automatic
timer SHUT-OFF)
- Digital display reads out directly in µ Ci/cc
of airborne I-131
A. Filter must be clean at start of each new air sample.
B. User can change sample time and/or flow-rate but must enter
new scale factor.
C. User can change readout units.
