hy-1m

CHROMATOGRAM SCANNING COUNTER

Medisotope Model # HY-1M

FEATURES:

ACCEPTS PAPER CHROMATOGRAMS, TLC STRIPS & ELECTROPHORESES

SENSITIVE THIN WINDOW SCINTILLATOR

SPOT & SLIT COLLIMATORS FOR LOW, HIGH ENERGY AND MIXED GAMMAS

HIGH PRECISION DIGITAL DRIVE SCANNER

SEES ALL GAMMAS > 20 KeV OPTIMIZED FOR ``MEDICAL'' ISOTOPES

PC CONTROLLED, EXPANDABLE TO MULTIPLE DETECTORS

MULTI-CHANNEL ANALYZER WITH BASIC SPECTRO-ANALYSIS SOFTWARE

PROGRAMMED TO ANALYZE AND COMPARE TRACES

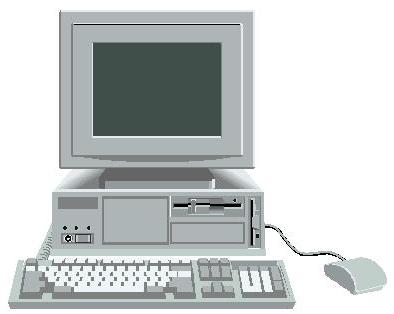

Computer

Computer Scane Data

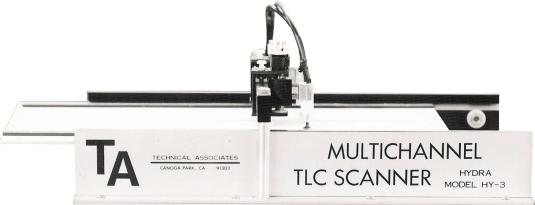

HY-1M Image

HY-1M, Hydra Series TLC Scanners

APPLICATION: TRACER METHODOLOGY IN BIOCHEMISTRY, BIOMED & CLINICAL LAB, RADIOPHARMACY , NUCLEAR MEDICINE.

The HY-1 series instruments are automatic scanners for TLC's, gels, paper chromatograms and electrophoreses. A moving 2'' x 12'' plate carries a 20 cm TLC or other sample in controlled steps under a bridge, examines trace on the sample and transfers information to coupled computer. Detectors are interchangeable. Normally supplied is a thin window scintillation detector highly sensitive to low energy gammas (such as those from I¹²⁵ Tc^99m, Fe⁵⁹ etc.) plus gammas of all energies above 20 KeV (I¹³¹, Cr⁵¹, Co⁵⁷, etc.) and betas above 500 KeV (P³², etc.).

Included in the computer is pulse height analysis resolution and ``Isotope Bank: to allow immediate visualization and estimation of Isotopic content. The multi-channel analyzer card in the computer with its associated software added to the localization and quantification of radioactive content in the peak analyzer section of computer makes the HY-1 a full function, versatile, TLC scanner.

^T_A TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com

CHROMATOGRAM SCANNING COUNTER

Medisotope Model # HY-1M

SPECIFICATIONS:

Electronics:
Integrated PC with MCA Multi-channel analyzer card.
Single channel MGA-5202 module (optional additional channels).
Detector: 25mm x 25mm NaI(Tl) Scintillator coupled to high gain PM tube. (Shielded with 2.5 cm lead) typical resolution is 8.5% based on 662 KeV gamma of Cs¹³⁷.
Sensitivity (30 sec/step): 100 DPM (as measured with I¹²⁵).
TLC Scanner Resolution: 1, 2, 5 or 10mm selectable distance per step
Counting Time: 1, 3, 10, 30, 100, 300, 1000, 3000 sec. intervals per step
Collimators:
2mm, 5mm, 10mm spot. Thin (low energy)
2mm, 5mm, X10 mm slit
Gamma Resolution: 2mm
Software: Blood Volume analysis and Schilling's analysis software, Windows compatible
Plate or Strip Size:
Nom. 2.5 cm x 20 cm
Max 5 cm x 30 cm
Weight: 130 lbs. (59 Kg)
Power: 220 VAC or 110 VAC, 50-60Hz
Features:
    Read-out: 15'' color monitor
    Programs: Peak Resolution
    Multi-channel analyzer with Isotope Data Bank Software which is pre-loaded on Hard Drive.
    Automatic operation.
    PC comes with CD writer
