| EXIT/DOORWAY MONITOR | PACKAGE/MAIL MONITOR |
|---|---|
| VEHICLE MONITOR | LAUNDRY MONITOR |
FEATURES:
Serves Many Needs: To maintain control of Radioactive Materials it is absolutely essential to control and to know when and where radioactivity is entering or leaving the area where it is used. Model LAM-10/PGS-3 and LAM-10/PGS-3L are high sensitivity monitors which are easily placed at entrance and exits and other strategic locations to act as: |

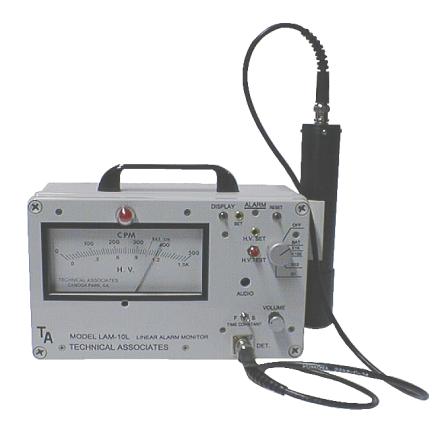

 LAM-10/PGS-3L |
| FUNCTION | DETECTS | PLACEMENT |
|---|---|---|
| 1. EXIT/DOORWAY MONITOR | Alarms when radioactivity is carried through an exit or doorway. | Mount to top or side of door frame or mount to wall. |
| 2. PACKAGE/MAIL MONITOR | When properly installed, checks all mail and packages. | Mount to sorting table, mail conveyor, or door frame where mail baskets enter. |
| 3. VEHICLE MONITOR | Alarms when vehicle carrying radioactivity stops at guard house. | Mount on posts on either side of facility entrance road
Requires weather-proof probe housing + long cables. |
| 4. LAUNDRY MONITOR | Detects contaminated garments. | Mount above sorting table or optional conveyor belt. |
| 5. RADIATION RELEASE MONITOR for FUME HOODS | Alarms when radioactivity is released into fume hood exhaust. | Mount inside or on top of fume hood filter enclosure. |
| Sensitivity: | |
|---|---|
| LAM-10/PGS-3L: | Detects 20 µ R/hr (0.2 µ Sv/h) above background in 2 sec: 99% confidence level. |
| LAM-10/PGS-3: | Detects 80 µ R/hr (0.8 µ Sv/h) above background in 3 sec: 99% confidence level. |
| SC-10-3 or | SC-10-3L | Shield-Collimator for PGS-3 or PGS-3L probe. |
|---|---|---|
| WPPH-3 or | WPPH-3L | Weather Proof Probe Housing |
| CA-xxx | Longer cables. | |
| CB-LIM | Conveyor belt for Laundry monitoring. |
