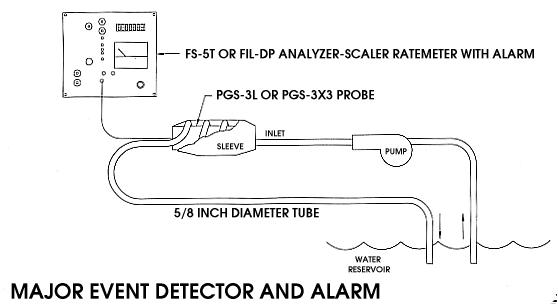

MAJOR EVENT DETECTOR AND ALARM:
The MEDA-5T System provides Automatic quick alarm in the event
that a terrorist dumps radioactive material into a water source or
in case of a large industrial, medical or Federal Government release
or accident.
SYSTEM COMPONENTS:
- FS-5T: Scaler Analyzer with battery back-up and High Level Alarm.
- PGS-3L: Scintillation detector with 2''dia. x 2'' NaI(Tl) spectroscopic grade crystal.
- PUMP: 100% duty cycle pump.
A. Available as submersible pump or
B. Self-priming; nonsubmerged pump.
- Hose and Coiled Hose which brings the sample to the detector
and back to the source.
- Optional submersible detector: Model PWS-18
is available.
|
Figure 1: FS-5T(Top); PGS-3L(Bottom)
|
