PORTABLE AIR MONITOR
Model # MicroBAM-3ZL

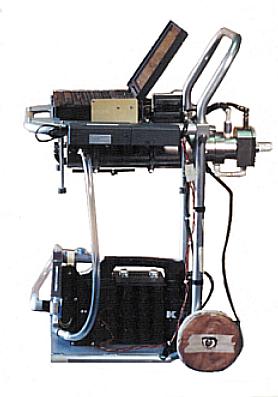

MicroBAM-3ZL on Cart Mount.
|

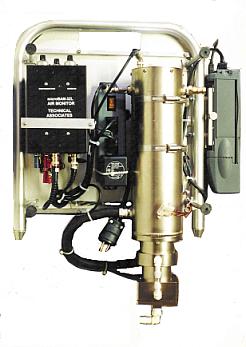

MicroBAM-3ZL Hand Carry.
|
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
PORTABLE AIR MONITOR
Model # MicroBAM-3ZL
- TOTAL SYSTEM WEIGHT ONLY 11 KG
PLUS DETACHABLE CART AND PRINTER
- HIGH SENSITIVITY TO 10-13 µCi/cc
- SIMULTANEOUSLY MEASURES AND
DISPLAYS 3 CHANNELS
- 600 Mhz PORTABLE PC (INCLUDED)
- REAL TIME ALARMS BASED ON CONCENTRATION
NOT JUST ACCUMULATION
- READS DIRECTLY IN µCi/cc
AS WELL AS TOTAL DOSE (DAC or any units)
- ALL CALCULATIONS DONE AUTOMATICALLY
- PRINTS OUT GRAPHS OF ALL 3 CHANNELS
- ALL DATA STORES ON FLOPPY DISK OR HARD DRIVE
(CD WRITER OPTIONAL)
- DYNAMIC BACKGROUND SUBTRACT
- SAMPLING HEADS ARE SEPARABLE AND REMOVABLE
- MEETS REG. GUIDE 8.25 AND REVISED 10 CFR 20
|
|
GENERAL DESCRIPTION: The MicroBAM-3ZL
series are three channel air monitors for SIMULTANEOUS measuring of
gross Beta-Gamma PARTICULATES, and GASEOUS radioactivity, and IODINE,
like all of the MicroBAM-3 series, these are continuous duty, high
capacity, rugged, portable systems. Electronics are microprocessor
with portable PC display. Detector heads are self contained allowing
change or addition of function as needed and allowing rapid repair
by substitution in the field. The system is covered by TA's unique
module exchange warranty, in addition to the full one year warranty
covering all TA products.
Both filter paper and charcoal cartridge are easily changed
via TA's unique quick-change, no-leak, o-ring/gasket sealed filter
holders. All plumbing connectors and openings are sealed against air
leaks. The air moving system is based on a dependable pump, capable
of delivering 1CFM, or optional 4CFM, through
clean filter paper and cartridge. A bypass valve and flow meter allow
the user to adjust air flow through filters from 0 to maximum range.
The entire system is extremely light and transportable, and comes
complete with all hoses, cabling and connectors in place, fully tested
and ready to operate. A cart is included to allow easy movement. System
is 115V single phase; 220V optional, 50/60
Hz.
SPECIFICATIONS:
- Channels: Three
- Activity Detected: Gross Beta-gamma particulate, Iodine, Noble Gas.
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
PORTABLE AIR MONITOR
Model # MicroBAM-3ZL
SPECIFICATIONS (Continued):
| DETECTORS |
Model MicroBAM-3ZL (Standard) |
Optional Alternative Detectors |
|---|
| Particulate: Beta-Gamma |
2'' dia. GM 2mg/cm2 Model T-1190 |
2'' dia. sealed proportional detector |
|---|
| |
47-55mm dia filter paper |
|
| Iodine: Gamma |
2'' dia. Scintillation NaI(Tl) |
2'' dia. BGO Detector |
|---|
| |
2'' dia. charcoal cartridge |
spectroscopic grade material |
| |
|
Optimized signal to background ratio |
| Noble Gas: Beta-Gamma |
2'' dia. GM 2mg/cm2 |
Solid State or 2'' Beta scintillator |
|---|
| |
300 cc sample chamber |
2'' sealed Proportional Detector |
- Detector Selection: TA offers a choice
of solid state, gas filled and scintillation detectors. 2'' diameter
sealed GM has same or greater beta sensitivity in all energy ranges
as proportional or beta scintillation or Solid State detectors. Threshold
is set as low as possible while still rejecting any preamp noise.
To make sure that you get the detectors you want; when an air monitor
purchase order is placed with TA, we send you an acknowledgment which
restates which detectors you have chosen, and asks for your confirmation
or correction.
CART VS. HAND CARRY:
The MicroBAM-3ZL system comes complete, operational,
and cart mounted for easy transport. The MicroBAM-3ZL can
also be hand carried to hard to reach locations. For this,
the printer and the cart can be left behind.
System sensitivity: Sensitivity and weights given below are
based on one week of operation, average background of 0.5mR/hour.
GM detectors for particulate and noble gas channels and NaI(Tl) detector
for iodine. Substitution of other detectors may increase system weight.
Pump is 1 CFM. Please add 6 kg. to substitute 4 CFM pump.
| |
MicroBAM-3ZL |
MicroBAM-3ZPb |
|---|
| Shielding, full four pi: |
none |
1/2 lead (Pb) |
|---|
| Particulate: Beta-Gamma |
6 x 10-11 µCi/cc. |
2 x 10-13 µ/cc. |
|---|
| Iodine: Gamma |
6 x 10-11 µCi/cc. |
2 x 10-13 µCi/cc. |
|---|
| Noble Gas: Beta-Gamma |
9 x 10-7 µCi/cc. |
1 x 10-7 µCi/cc. |
|---|
| 3 Channel Printer |
0.5 or 2.1 kg |
2 kg |
|---|
| System Weight, TOTAL (Approx.) |
16 kg |
45 kg |
|---|
| Hand Carry Weight (Approx.) |
11 kg |
39 kg |
|---|
| includes computer, pump, detectors |
|
|
|---|
| excludes printer and cart |
|
|
|---|
This Air Monitor is more sensitive on all channels
by factors of 5 to 500 than what is requires by the USNRC and other
regulatory agencies.
- High Voltage: Separately variable for
scintillation or proportional detector from 0 to 1,500V (or 2,500V).
- Readout Screen: Showing both real-time
concentration and accumulated doses for all channels simultaneously.
- Accuracy: ±10% except for
resolution loss and statistical variation.
- Alarms: All alarms are easily set by user
to any value within BAM range.
Low Level Alarm: Automatic Reset.
High Level Alarm: High level alarm remains activated until
RESET button is pushed.
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
PORTABLE AIR MONITOR
Model # MicroBAM-3ZL
SPECIFICATIONS (Continued):
- Alarm Indication: PC Screen displays
all alarms.
Optional: MAL-Z Alarm module has lights for each channel: Red-High level and Amber-Low Level. Audio: 1000Hz, greater than 80db and fail-safe and alarm relays for customer use. See below. .
AIR MOVING SYSTEM
- Air Pump: Extremely rugged continuous
duty.
- Pump Drive Motor: Continuous duty.
- Flow Gauge: 0 to 120 liters/minute.
- Bypass Valve: Adjustable bypass valve allows rate to be set to ±0.1 CFM with clean filters, for 0 to maximum CFM. (Automatic Air flow regulation Optional)
- Inlet + Outlet: 15 Foot inlet and outlet hoses provided. May be extended.
- AUTO CALIBRATION: Instrument calibrates itself when user inserts standard sources.
ELECTRONIC SYSTEM DESCRIPTION: (Micro-processor based)
Electronics is Pentium-based, high quality portable
PC including:
| Serial Port |
Parallel Port |
PCMCIA Ports |
|---|
| Windows XP (TM) |
Excel Spread Sheet (TM) |
Keyboard |
|---|
| CPU with Data Acquisition |
High Resolution, COLOR display |
Audio |
|---|
| Touch Pad Pointer |
Manuals |
|
|---|
3.5'' Floppy disk drive - for DATA STORAGE - 30 days per
disk.
30 Gigabyte hard drive. Stores programs and 20 YEAR'S DATA.
Room for new software functions in the future.
Specialized TA air monitor software.
Graphics printer for hard copy. 3trace graphs at the push
of two buttons.
- Printer Options:
Standard computer printer - full size (2.1kg)
Miniature on-board printer - very small (0.5kg)
- Outputs: Alarm condition outputs:
1. Logic Level Signal - From PC
2. Contact closure or opening - From Optional MAL-Z alarm module.
Modem: Fast 56K BPS or faster, V-90 (plus Optional data compression)
- Standard Installation: 2 wheel cart mounted for transporting long distances, single hand portability.
- Hand Carry: System can be easily hand carried without cart.
- Special Safety Features:
Loss of air flow and loss of signal alarms, all circuits fused.
Thermal protection on motor.
- Accessories: System is shipped with all necessary accessories included and tested with system including all cables, hoses and manuals.
- Dimensions: Per attached drawings.
- Shipping Weight: 35 kg.
- Consumables: System is shipped with starter kit containing consumables including filter paper, charcoal cartridges, printer paper and ink/toner.
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
PORTABLE AIR MONITOR
Model # MicroBAM-3ZL
SPECIFICATIONS (Continued):
- Extra Cost Options: Air monitor available
with alternate air movers. Broader range to 12 decades.
| Different detector types. |
Different cart size. |
|---|
| Iso-Kinetic operation. |
MAL-Z alarm/relay module. |
|---|
Ethernet and Modem are included, other interfaces for 4-20mA,
RS-485, etc... are optional.
Calibrated Radiation Standards (Cs-137, Ba-133, etc...)
COMPARISON OF CERTAIN FEATURES
Technical Associates BAM-3 was perhaps the first
CAM to correct for build-up of activity on the filters and to directly
readout airborne radiation concentration in µCi/cc (or Bq/liter,
etc...) thus allowing Real Time Alarms plus better system sensitivity
and accuracy. Recent enhancements include: Lighter system weight,
Quieter Pump, Faster Computer with Massive Data Storage.
| |
TYPICAL:
(Not Technical Associates) |
TECHNICAL ASSOCIATES:
MicroBMA-3ZL |
|---|
Corrects for Activity Build Up on Filters
and Reads Directly in Concentration: |
Some Do, Some Do Not |
Yes |
|---|
| Display: |
40 Characters |
14'' Color LCD Monitor |
|---|
| Dependable: |
No |
Yes |
|---|
Simultaneous Collection and Measurement
of Particulate, Iodine and Noble Gas: |
No |
Yes |
|---|
Number of Simultaneous
Measurement
Channels: |
1 |
3 |
|---|
| Micro-Processor Speed: |
Not Pentium |
1 GHz Pentium |
|---|
| Data Storage Capacity: |
|
|
|---|
| Bytes: |
0.05 megabytes. |
30 gigabyte |
|---|
| Years: |
83 days |
20 Year Data |
|---|
| Precision: Data Storage Intervals: |
Every Hour |
Every 2 Minutes |
|---|
| Removable Data Storage (floppy disk) Bytes: |
No |
1.44 megabytes*/disk |
|---|
| Optional CD - Writer: |
No |
Yes - 540 megabytes*/disk. |
|---|
| Noble Gas Sensitivity Lowest Level: |
2.7 x 10-7 OPTIONAL |
1.0 x 10-7 INCLUDED |
|---|
| Numerical and Graph Print-Out: |
|
|
|---|
| Any Day This Year: |
No |
Yes |
|---|
| Any Month This Year: |
No |
Yes |
|---|
| This Year to Date: |
No |
Yes |
|---|
| Daily Average or Total: |
No |
Yes |
|---|
| Monthly Average or Total: |
No |
Yes |
|---|
| Full Year Average or Total: |
No |
Yes |
|---|
| Choice of Pumps: |
No |
Yes |
|---|
| Quiet Pump Available: |
No |
Yes 30 LPM (Almost no Sound) |
|---|
| Ethernet Supplied (Standard): |
No |
Yes |
|---|
| Modem: |
No |
Yes |
|---|
| System Weight (Total): |
20 kg Typical |
16 kg |
|---|
| (Hand Carry): |
20 kg Typical |
11 kg |
|---|
| Wheels: |
2`` dia |
5 dia. Steel with Rubber Rims |
|---|
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
PORTABLE AIR MONITOR
Model # MicroBAM-3ZL
ADDITIONAL INFORMATION ON OPTIONS AND CHOICES FOR TA's MicroBAM-3ZL:
PUMPS:
| MODEL # |
VOLTAGE |
FREE AIR |
IN USE |
WEIGHT |
SOUND LEVEL |
|---|
| AP-1-115 |
115V 50/60Hz |
1.3 CFM |
1 CFM |
1.6 kg |
total quiet |
|---|
| AP-4-115 |
115V 50/60Hz |
5.6 CFM |
4 CFM |
8 kg |
regular |
|---|
| AP-1-220 |
220V 50/60Hz |
1.3 CFM |
1 CFM |
1.6 kg |
total quiet |
|---|
| AP-4-220 |
220V 50/60Hz |
5.6 CFM |
4 CFM |
8 kg |
regular |
|---|
PRINTERS:
| MODEL # |
WEIGHT |
SUGGESTED USE |
|---|
| PR-PZ |
0.5 kg |
Can mount on cart for portable use. |
|---|
| PR-FL |
2.1 kg |
Use for printing graphs and data back at RSO Office. |
|---|
PORTABLE COMPUTER (LAP-TOP):
| MODEL # |
DESCRIPTION |
|---|
| PC-IBM |
IBM THINK PAD[TM] |
|---|
| PC-WPRF |
Water-Proof PC for worry proof decontamination or cleaning. |
|---|
(Unit is available with alternative Detectors for
different isotope detection. Please Call Technical Associates with
your Specific Needs.)
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
