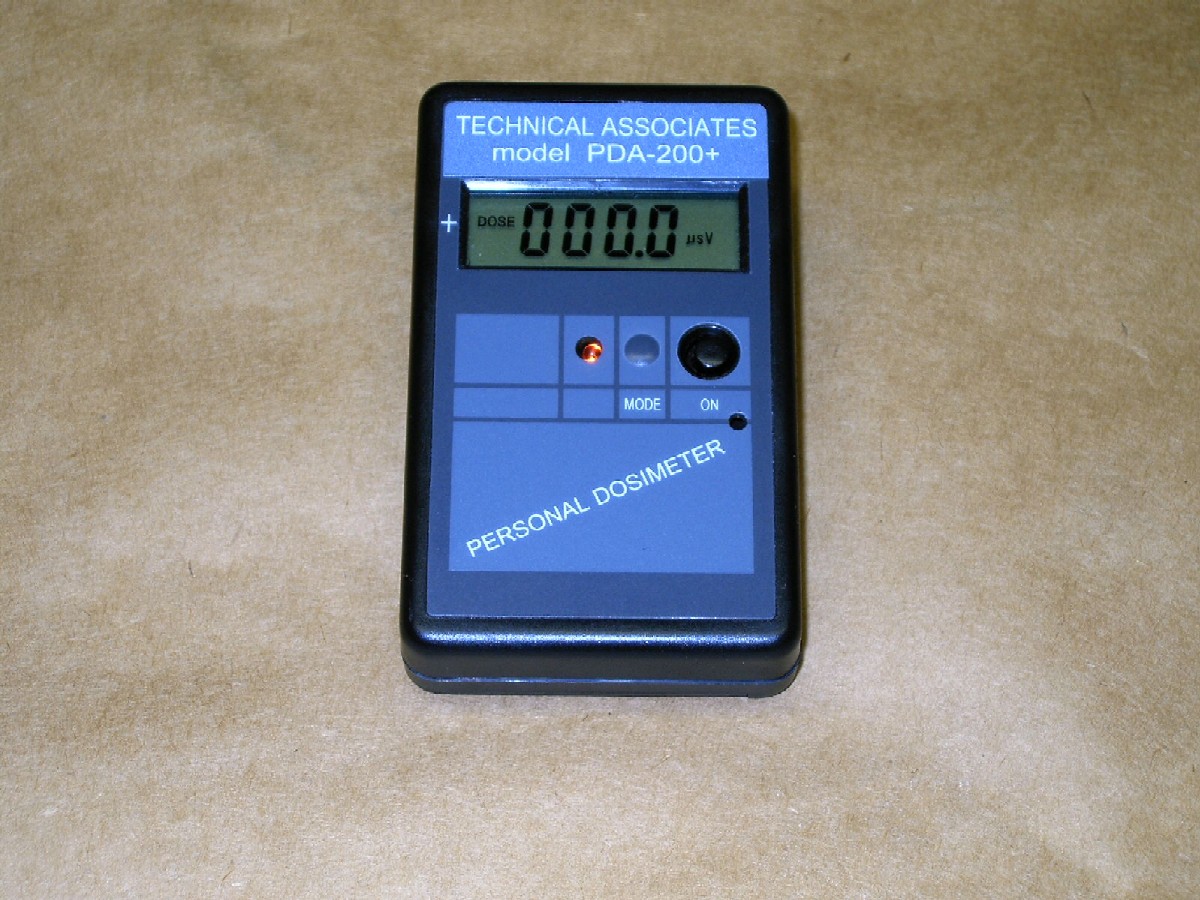

ALARMING POCKET DIGITAL DOSIMETER

Model # PDA-200 + mR

Model # PDA-200 + Sv

FEATURES: 4 DIGITS TO 200.00 mR DOSE AND DOSE RATE 700 HOUR BATTERY LIFE AUDIBLE AND VISUAL READOUT LCD CONTINUOUS DISPLAY TRULY POCKET SIZE BUILT IN MEMORY

DESCRIPTION: PDA-200+ accurately records dose rate and total exposure and by emitting a ''beep'' and ``flash'' at each 0.01 mR of exposure and gives audible/visual indication of rate as well as an accurate record of dose. When the alarm set-point is reached, a long beep and flash occurs. The PDA-200+ is completely digital, thus eliminating the inaccuracy inherent in any analog system. Recessed and tool-accessible dose-reset prevents unauthorized or accidental erasure of exposure history. The PDA-200+ is lightweight (3.5 oz.) and truly pocket size. Battery is available from outside case.

LED battery check indicates when less than 8 hours of battery life remains. Memory of dose is retained for at least 20 hours even with ``dead'' battery.

SPECIFICATIONS

• Range: Dose Rate (10 µR/hr to 10 R/hr)0.1 µSv/h to 99.99 mSv/h
• Range: Total Dose (0 µR to 10 R) 0.0 µSv to 99.99 mSv
• Alarm Levels:     (Rate) (25 µSv/h) 2.5 mR/hr     (Dose) (50 µSv), 5 mR     (Sound Levels) 80 db at 30 cm
• Controls:
      Front panel controls: Power on-off, alarm level set
      Protected controls: Dose reset, calibrate
• Readout: LCD solid state, in-line, 4 digits
• Beep/Flash Rate: 1 beep/flash per .01 mR or per 0.1 µSv
• Battery: 2 each Standard AA cells, 700 hour normal operating life at 0.1 mR/hr. Low battery indicator at 2.7 volts.
• Accuracy: Better than ± 0.01 mR (measured with Cs-137 Gamma)
• Energy Independence: Energy compensated GM tube. ± - 15% from 80 KeV to 1.3 MeV. Response from 40 KeV up.
• Linearity: Linear to rates up to 20 R/hr
• Anti Saturation: Does not saturate at 1,000 R/hr
• Pocket Clip-belt: Heavy duty spring loaded
• Case: High impact, injection molded ABS
• Dimensions:    2.2'' W x 3.6'' L x 0.75'' Thick (55 x 92 x 18 mm)

• Weight: 3.5 oz, (100g) including battery
• Response Time: 3.6 seconds for 6µSv/h and above 36 seconds below (0.6 mR/h), 6µSv/h
• Memory: Memory retention up to 2 years. And 20 sec. retention during battery replacement.
• Temperature ± 10 % from - 10 ° C to 50 ° C, 0-95% RH
• Current Drain – Stand-by:   130 MicroAmp
• Power-on:   665 MicroAmp
