pgm-2l

PIPE/GROUND MONITOR SYSTEM

Model # PGM-2L

FEATURES:

SMALL DIAMETER

HIGH SENSITIVITY

RUGGED

MOISTURE RESISTANT

OPTIONALLY SUBMERSIBLE

PORTABLE

IMAGE, PGM-2L

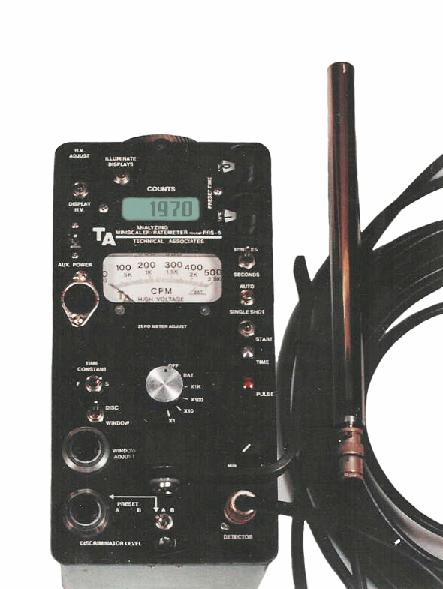

Figure 1: PGM-2L

DESCRIPTION: The PGM-2L is truly a lightweight portable monitoring system which consists of a moisture resistant BGO* scintillation probe 5/8'' in diameter and up to a 40 foot cable. The readout for this system is a Model PRS-5 Ratemeter/Scaler which includes three single channel switch selectable analyzers. The ten inch long probe contains a sensitive/rugged photo-multiplier, dynode resister string, and a 1/2'' x 2'' BGO scintillation crystal.

APPLICATION: This system is extremely useful for location or movement of underground radioactivity by use of pipes driven into the formation.

SPECIFICATIONS:

READOUT: See PRS-5 Data Sheet
PROBE
Length: 10''
Weight: 10 oz.
Diameter: 5/8''
Scintillator Type: BGO*
Scintillator Size: 1/2'' x 2''
Drive Capability: 40' into PRS-5 Readout Package
Sensitivity: Typically 350,000 cpm/mR/hr
Efficiency: Better than 50% for Cs¹³⁷ gammas
*High Density: 7.13 (vs. 3.67 for Nal) nearly doubles sensitivity for gammas in general. High atomic # enhances sensitivity to low energy gammas by a further factor of up to 10.
**Options: Immersion proof probe
