PORTABLE ANALYZING SCALER/RATEMETER

Model # PRS-5

FEATURES: THREE SINGLE CHANNEL ANALYZER WINDOWS, SWITCH SELECTABLE FULL AUTOSCALER FUNCTION AUTO-CYCLE FULL ANALOG FUNCTION CRYSTAL CONTROLLED ANY T/A GM, PROPORTIONAL, OR SCINTILLATION, ALPHA, ETA, GAMMA, X-RAY, NEUTRON PROBE LIGHTED SCALES SPLASH PROOF

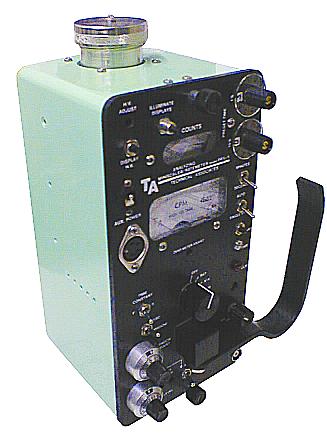

Figure 1: PRS-5

DESCRIPTION: The PRS-5 is a sturdy portable instrument designed for rugged field use, but incorporating both scaler and ratemeter functions, single channel analyzer with three presettable windows, variable high voltage 0-2500V. All calibration pots are available from outside the case as is the leakproof battery compartment. All closures are gasketed or otherwise sealed to result in a splashproof instrument. The meter is a taut band type for maximum ruggedness; additionally both meter and LCD scaler readout are recessed for protection against damage. Both displays are illuminated when the ``illuminate'' button is depressed and remain lighted for approximately 6 seconds.

Pulses are seen via a red LED for visual service in dark areas and the time base for scaler operation is indicated by a flashing green LED. Accommodates pulses from all types of detectors including scintillators, proportional and GM detectors. Four ranges are incorporated into the ratemeter. Gate times for the scaler may be set from 1 to 99 seconds (and 1 to 99 minutes) and free running mode. The scaler has an autocycle capability particularly useful for increasing the accuracy of rate measurements and for operating optional printer. Power switch and HV pot and other controls are designed to prevent inadvertent change. The output of the ``beeper'' is varied by a volume control from completely silent to loud enough to be used in quite noisy environments. Standard features include jack for optional AC adapter and output jack for optional chart recorder. Yet the overall instrument, including all of these functions and including battery life up to 300 hours, still weighs only 62 ounces, making it one of the lightest instruments of this type available.

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com

PORTABLE ANALYZING SCALER/RATEMETER

Model # PRS-5

SPECIFICATIONS:
  DIGITAL

• Readout: 6 digit LCD
• Time Base: Crystal controlled 1-99 sec, 1-99 min, and free running
• Run Modes: Single shot, autocycle
• Display Modes: Latched, continual update
• Gate Monitor: Green LED, 1 second cycle
• ANALOG]
• Meter: 0-500 cpm recessed rugged (optional Sl units).
• Ranges: x1; x10; x100; x1,000 (0-500, 5k, 500k cpm).
• Time Constant: 2 sec 11 sec
• Pulse Monitor: Red LED one flash per pulse
• Range: Usable probes cover range 1 µR/hr to 1000 R/hr; 1 cpm to 500,000 cpm; 0.1 mRem/hr to 10 Rem/hr
• Audio Indicator: Piezo electric sounder with volume control.
• Strip Chart Recorder Output: Standard feature 0-1 Volt
• Single Channel:
     3 switch selectable windows
     2 preset (resettable) window positions plus one ``variable''
• Analyzer/Discriminator:
     10-turn, 1000 division pot for each threshold
     10-turn, 1000 division pot for window width
• Detector: Mates with T/A probes, any GM, proportional or scintillation, alpha, beta, gamma, positron, x-ray, neutron or tritium.
  Detector Connector: BNC bulkhead mount (MHV optional)
  Detector Bias: 0-2500V regulated and filtered
  Supply: High Voltage is displayed on meter by pushing a button

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com

PORTABLE ANALYZING SCALER/RATEMETER

Model # PRS-5

  POWER

• Batteries: 3 each D cells, accepts Alkaline, Carbon-Zinc, Lithium, or rechargeable NiCads with no adjustment required. Separate sealed battery compartment available from outside case.
• Battery Life: Nominal 300 hours with alkaline batteries
• Battery Check: On main range switch and meter marking
• AC Operation: Connector for optional AC adapter
• Splashproof: Seals and gaskets throughout
• Construction: All plug in circuit cards; essentially no wires. Sturdy deep drawn aluminum case
• Dimensions: 23cm L x 10.5cm W x 14.5cm (9'' x 4.1'' x 5.7''). Includes handle and tilt stand both in folded position
• Weight: 1.7 Kg (62 oz) including batteries.
• Shipping Weight: 3 Kg (6.6 lbs)
• Options: Connection for interface to printer or computer Sl units
• Accessories:
     Printer
     Strip Chart Recorder
     AC Adapter
     Over 50 different T/A probes and sample counter detectors
     Probe holder supplied - no charge if probe and PRS-5 purchased together

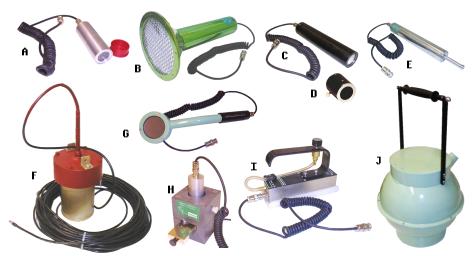

     A. PG-LB, B. PAS-9, C. BGS-IN, D. Collimator, E. PLS-04, F. DMU-1000, G. P-15, H. STB-TF-6, I. TS-26, J. PN-13
