INSPECTOR'S RADIATION SCANNER

Model # RAD-ID-W

FEATURES: DETECTS "AT A DISTANCE'', "SEES-THRU" OBSTACLES EXCELLENT SEARCH TOOL LARGE 7" dia. NaI(Tl) CRYSTAL FOR GAMMAS OPTIONAL NEUTRON DETECTOR OPTIONAL SHIELD AND COLLIMATOR FAST, ACCURATE RESPONSE HAND CARRIED, BACKPACK, OR MOUNTED ON ALL-TERRAIN CART LINE, BATTERY, OR VEHICLE OPERATION PURPOSE: The RAD-ID-W has 12 times greater area and 12 times greater sensitivity than the popular 2'' x 2'' NaI(Tl) portable Gamma Spec units. This allows detection of items that are not detectable or not resolvable by smaller devices. Shipping Container with an unlikely MANIFEST or suspicious origin: Does it contain a shielded cache of Cesium, Uranium, Sr90 for a Dirty Bomb or Plutonium, or suitcase Nuke.   A Coast Guard cutter is cruising the harbor, stops to look at a suspicious boat, but does not have time to board and search. The RAD-ID-W saves time. In most cases, it can eliminate the need to conduct lengthy inspections and searches to find the presence of radioactivity.   An inspector doing his/her job approaches a vehicle, a shipping container, a package, a shed, which might contain radioactive material. Because of RAD-ID-W's high sensitivity an external scan is usually sufficient.

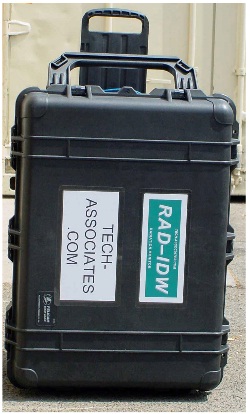

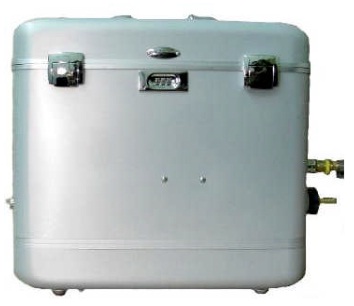

Rollable Suitcase RAD-ID-W   Rollable RAD-ID-W front view

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com

INSPECTORS RADIATION SCANNER

Model # RAD-ID-W

Now if the inspector does not have the RAD-ID-W he/she must: Must file and get authorization to enter and search the area or container. Find the owner to gain access or break the locks. Get one or more co-workers to help as a witness, or for security, and for technical expertise. Use radiation detector to do a detailed search of contents of building, container, vehicle, etc... Highly Sensitive optional Neutron Detector gives warning and confirmation that fissionable materials are present.

	Detector Unshielded:	Detector with Optional Shields Collimator:	PRS-5 Analyzer Readout:	Optional Cart:
Size:	7.5'' dia. x 12'' long (Gamma) 2.5'' dia. x 12'' long (Neutron)	8'' dia x 15'' long	4'' x 5'' x 10''	36'' H x 15'' W x 17''D
Weight:	15 lbs. Gamma + 5 lbs. Neutron	20 lbs. (Optional)	6 lbs.	8 lbs.




Optional: Shielding and collimator allows improved directional measurements and measurements at a distance. Even without collimator, RAD-ID-W gives higher count rate when it is pointed at the target.



RUGGEDIZED VERSION OPTIONAL:

PARAMETER	SCINTILLATION PROBE SPECIFICATIONS
Temperature Range:	-40 to +65 degrees C
Vibrations	5G RMS on 3 axis
Shocks	100 G
Environmental	All Rugged detectors meet the IP54 spec. On request provisions to meet IP 68 can be included.
Salt Spray	Immune
