MOVING FILTER ALPHA PLUS BETA-GAMMA AIR MONITOR SYSTEM

Model # SAAM-1

FEATURES: AIRBORNE ALPHA and BETA-GAMMA PARTICULATES COUNTS SEPARATELY AND SIMULTANEOUSLY RUGGED, 100% DUTY CYCLE SETTABLE ALARM ZERO CROSS TALK BETWEEN CHANNELS NO GAS SUPPLY REQUIRED HIGH THROUGHPUT OPERATES 2-6 WEEKS UNATTENDED PRINTED RECORD RS-232 SERIAL PULSE OUTPUT 3'' LEAD SHIELDING

SAAM-1

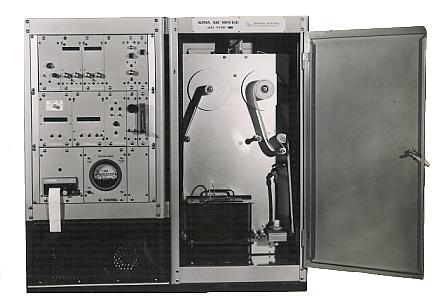

DESCRIPTION: Model SAAM-1 Filter Tape Alpha/Beta-Gamma Air Monitoring System is a line operated continuous duty long period air monitor which automatically integrates over preset period and prints results. It incorporates an alarm as well as hard copy. The electronic system is completely modular. Standard configuration reads gross alpha and gross beta-gamma. Has plug in capacity for one or more channels of specific radiation energies, e.g., Pu-239, U-238, etc.

In practice this system draws air through a section of a filter tape for a sufficient period to achieve the sensitivity desired and measures the activity on the tape after a predetermined elapsed time; usually 20 minutes. The system utilizes a high capacity pump and dwell times in the order of 20 minutes. Sensitivity is achieved in the order of 1% of the most restrictive alpha or beta-gamma airborne contamination standard.

APPLICATION: Model SAAM-1 Monitor is used for monitoring effluent from radioactivity utilizing or producing facilities either directly at the stack or other outlet or at the property boundary. It may be left unattended for period up to 45 days furnishing a complete record of activity for the period. The system alarms if filter roll is used up, which can happen if time limit is exceeded.

OPTIONS:

1. Single Channel Analyzer window(s) specifically for PU-239, and U-238 and/or other nuclides.
2. Clock and calendar to give printed date and time of each reading.
3. Calibration function to allow readout directly in µCi/cc or cps/m³ or other units.
4. Integrate function to average results over a 24 hour, or 100-day interval.

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com

MOVING FILTER ALPHA PLUS BETA-GAMMA AIR MONITOR SYSTEM

Model # SAAM-1

SPECIFICATIONS:

• INCLUDES:]
• Filter Paper Transport: 3'' wide roll of filter paper.
• Safety Features: Torn paper indicator, clogged filter indicator, motor thermal protection.
• Pump: Air pulling assembly with continuous duty positive displacement pump capable of pulling over 3 cfm through the filter paper for 4 hours per section in normal clean air.
• Air Flow: Factory set at 3 cfm - may be adjusted by user.
• Detectors:
     Gross Alpha: 2'' sensitive diameter ZnS(Ag) Alpha Scintillator.
     (Alpha Spec. Optional: solid state Alpha detector, see Helium flush option below).
     Beta: Pancake GM tube 2'' dia. with beta filter which stops all Alphas. (Optional sealed 2'' Beta proportional detector).
• Shielding: 3'' lead.
• Electronics:

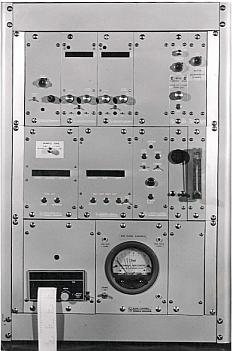

      Scaler Module FIL-7DP, complete with RS-232 serial output for computer or peripheral readout devices and also with electronic contact closure, which is settable from front panel, to operate the alarm module listed below or to operate other devices.

      FIL-7DP Module: Incorporates - Scaler, Calibration Factor, Timer, and Alarms.
      MAL-6B: Alarm Modules - One lamp and one sonalert, (or MAL-B3: 6 lamps and one loud sonalert - Optional).
      MPM-5: Printer Module.
      MVR-5R: Power Supply Module.

      This electronic package is all modular in construction with plug-in modules, a cabinet is included although the modules may be rack mounted if desired. The entire system comes complete, fully tested with cordage and tubing in one cabinet.
      However, operation between the detector and electronics up to 500 feet cabling is available.
• Dimensions:
      24'' W x 36'' L x 42'' H.
      Mounted on Cart: 24'' W x 36'' L x 54'' H.
• Weight: 620 lbs.
• Shipping Weight: 750 lbs.

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com

MOVING FILTER ALPHA PLUS BETA-GAMMA AIR MONITOR SYSTEM

Model # SAAM-1

• Optional:
      Cart for above system.
      Single Channel Analyzer to isolate specific nuclide.
      Calendar/Clock to read out date and time as well as radioactive content on printer tape.
      Background compensator.
      Direct µCi/cc or cps/m³ readout.
      Totalizer to average contents over 8 hours, 24 hours, or 30 days.
      Helium flush for Alpha spectroscopy option.


SAAM-1

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com
