MOVING FILTER ALPHA PLUS BETA-GAMMA
AIR MONITOR SYSTEM
Model # SAAM-1HVM
FEATURES:
- AIRBORNE ALPHA and BETA-GAMMA PARTICULATES
- COUNTS SEPARATELY AND SIMULTANEOUSLY
- RUGGED, 100% DUTY CYCLE
- SETTABLE ALARM
- HIGH THROUGHPUT
- OPERATES 2-6 WEEKS UNATTENDED
- PRINTED RECORD
- BCD AND SERIAL PULSE OUTPUT
- 3'' LEAD SHIELDING
- 2 CHANNEL AIR MONITOR:
CHANNEL 1: ALPHA LESS RADON
CHANNEL 2: BETA-GAMMA PARTICULATE
DESCRIPTION: The SAAM-1HVM
series are two channel air monitors for simultaneous measuring
of gross Alpha, and Beta-Gamma particulates. Like all of the SAAM
series, these are continuous duty, high capacity, rugged skid or caster-mounted
systems. Electronics are microprocessor with color LCD display. Also
preamps etc. are plug-in modules allowing change or addition of function
as needed and allowing rapid repair by substitution of modules in
the field. The modular system is covered by T/A's unique exchange
warranty, in addition to the full one year warranty covering all T/A
products.
|

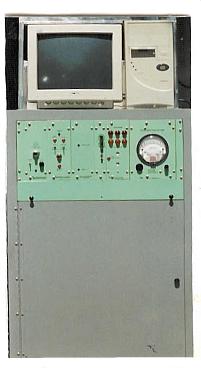

SAAM-1HVM

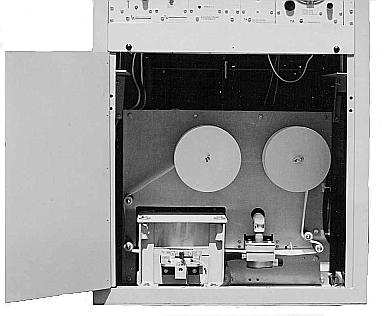

Filter Paper
|
Shields are void free lead with stainless steel
parts for a long, useful life and easy decontamination. Filters are
easily changed via quick disconnect, supply and take up spools. Shield
can be opened for filter change or cleaning with minimum effort. All
shield connections and openings are sealed against air leaks. The
air moving system is based on a high capacity air pump capable of
delivering 5 cfm with Options up to 30
cfm free air and including fine regulation in the 3 cfm to 5 cfm operating
range. The entire system is mounted in a self-contained rugged cabinet
and comes complete with all cabling and connectors in place ready
to operate. The standard unit is operated from 115 V single phase,
60 Hz; Optional 220 V, 50 or 60 Hz.
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
MOVING FILTER ALPHA PLUS BETA-GAMMA
AIR MONITOR SYSTEM
Model # SAAM-1HVM
SPECIFICATIONS:
| Channels: |
1 |
2 |
|---|
| Physical Form: |
Particulates |
Particulates |
|---|
| Activity Detected |
Alpha |
Beta-Gamma |
|---|
| Detector Type: |
Solid State |
Thin Window GM |
|---|
| Size: |
1'' diameter |
2'' diameter |
|---|
| Model: |
SS-A1 |
T-1190 |
|---|
| Filter Media: |
Moving Filter |
Moving Filter |
|---|
| Size: |
75mm x 100meters |
75mm x 100 meters |
|---|
| Construction: |
Standard or Glass Fiber |
Standard or Glass Fiber |
|---|
| Standard Shielding: |
1/2''Steel |
3'' (Pb) Lead |
|---|
| Optional Shielding: |
|
1'' (Pb) Lead |
|---|
| Sensitivity: |
2 x 10-13 µCi/ml |
2 x 10-13 µCi/ml |
|---|
- Display Mode: Model SAAM-1HVM features
micro-processor control and color LCD monitor.
- Operation: When SAAM-1HVM continuous air
monitor is in normal operation, the color LCD monitor displays:
| CHANNEL NAME STATUS |
REAL TIME AIRBORNE CONCENTRATION µCi/m3 (NOTE 1) |
ACCUMULATED DOSE FOR THIS SHIFT µCi-Hrs/m3 (NOTE 1) |
CONCENTRATION ALARM STATUS |
ACCUMULATED DOSE ALARM DOSE |
|---|
| PARTICULATE ALPHA |
-- |
-- |
-- |
-- |
|---|
| PARTICULATE BETA-GAMMA |
-- |
-- |
-- |
-- |
|---|
| Other alarms: |
status |
|
|
|
|---|
| |
Low Air Flow ___ |
Loss of Signal Particulate Alpha |
___ |
|---|
| |
|
Loss of Signal Particulate Beta-Gamma |
___ |
| |
|
|
|
| MENU OPTIONS: |
1. Modify shift length |
2. Change filter |
|
|---|
| |
3. Configure energies |
4. Set alarms |
|
| |
5. Start shift |
6. Save to floppy |
|
NOTE 1 - User can easily change engineering units
at will.
Clear audio and visual alarms are provided.
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
MOVING FILTER ALPHA PLUS BETA-GAMMA
AIR MONITOR SYSTEM
Model # SAAM-1HVM
MAIN DISPLAY SCREEN
DATA.TXT DISPLAY SCREEN SHOWS DATA
SAVED TO FLOPPY
Model shown in photo is 7-channel version
DATA REVIEW MODE: (DATA.TXT)
Model SAAM-1HVM continuous
air monitor automatically saves all data and set-up parameters to
3.5'' floppy diskette every hour. This data can be reviewed on the
color LCD display.
TEST.EXE DISPLAY SCREEN FOR SETTING ENERGIES
MOVING FILTER ALPHA PLUS BETA-GAMMA
AIR MONITOR SYSTEM
Model # SAAM-1HVM
SPECIFICATIONS (continued):
ELECTRONIC SYSTEM DESCRIPTION -
Micro-processor is Pentium-based, including:
| CPU with data acquisition |
Keyboard |
|---|
| High resolution, color |
Color LCD Monitor |
|---|
| Mouse |
Audio |
|---|
| Manuals |
Graphics printer for hard copy - 4 trace graphs |
|---|
3.5'' floppy disk - For data storage - 30 days per disk.
CD writer also included.
1 gigabyte hard drive - Stores programs, plus room to add
additional new software functions in the future.
Specialized air monitor software.
Technical Associates standard modular series - all solid state.
2 ea. MGA-520 - Fully adjustable single channel analyzer with
independent High Voltage power supply;
1 ea. MVR-5R Power Supply.
1 ea. LNM-5 Strip Chart Recorder or GRP-10 graphics printer.
1 ea. Magnehelic gage.
- High Voltage Supply: Separately variable
for each detector from 0 to 2000 V. Standard FM-5 modular series.
- Display Monitor: Showing both real time
concentration and accumulated dose for all 3 channels.
- Accuracy: ±10% except for
resolution loss and statistical variation.
- Alarms: Alarms presettable to any trigger
level.
Low Level Alarm: Automatic Reset
High Level Alarm: High level alarm remains activated until
RESET is pushed.
Alarm Indication: Red-High Level, Amber-Low Level
Audio: 1000 Hz, greater than 80 db. Also see Safety Features
below.
- Air Moving System: Air pump: Extremely
rugged continuous duty Positive displacement low rotating speed pumping
system. Pump is high capacity positive displacement. Pump noise is
reduced by heavy duty muffler.
Pump Drive Motor: 1 HP, 50/60 Hz, capacitor start, induction
run.
Flow Gage: Magnehelic 3-10 cfm, 4'' dial.
Flow Control: Automatic flow control settable 0-4 cfm ±0.2 cfm.
Inlet and Outlet: 20 foot 3/4'' hose inlet: 20 foot 1''
hose outlet. May be extended.
Flow Rate: Factory set at 4 cfm, can be reset up to 5 cfm
with larger motor and up to 30 cfm with some pluming change.
- Controls:
| System: ON-OFF |
Air: ON-OFF |
| Printer/Recorder: ON-OFF |
(each channel) High Level Alarm: Set |
| (each channel) High Level Alarm: Reset |
(each channel) Low Level Alarm:Set |
| (each detector) Voltage: Set |
(each detector) Energy Threshold/Window Set |
TA TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com
MOVING FILTER ALPHA PLUS BETA-GAMMA
AIR MONITOR SYSTEM
Model # SAAM-1HVM
- Outputs: Alarm condition outputs: 1. logic
level signal 2. contact closure-or opening.
Ethernet and Optional modem or
server.
- Standard Installation: Cabinet of heavy
gauge steel. Skid or caster mounted with 4 five inch ball bearing
casters, two of which are full swiveling.
- Special Safety: Loss of air flow alarm.
Loss of signal alarm. All circuits fused.
- Features: Thermal protection on motor.
(Optional: Positive displacement ROOTS
pump).
- Dimensions: 29'' wide x 31'' long x
41'' high exclusive of casters.
- Weight: 1800 lbs (lighter systems are
available).
- Shipping Weight: 2100 lbs (lighter systems
are available).
- OPTIONS: Air monitor available without
air mover or with alternate air movers. Broader range 12 decades.
Different detector types. Three push-button check sources (License
exempt quantities).
Positive Displacement of Roots Blower.
Higher Flow up to 30 cfm.
Lighter system with less shielding.
For example 1'' shielding.
Modem and/or Server.
