SCINTILLATION PROBES

GAMMA BGO

Scintillation Probes (Gamma) BGO: BGS-2505 Low Energy Gamma & X-ray. 1'' Diameter x 0.5mm Thick. Detects 10 KeV Standard. Available down to 2 KeV upon request. (Figure 1) BGS-3705 Low Energy Gamma & X-ray. 1.5'' Diameter x 0.5mm Thick. Detects 10 KeV Standard. Available down to 2 KeV upon request. (Figure 2) BGS-371 Low to Intermediate Energy gamma & x-ray. 1.5'' Diameter x 1mm Thick. Detects 10 KeV Standard. Available down to 2 KeV upon request. (Figure 2) BGS-251 Low to Intermediate Energy Gamma & X-ray. 1'' Diameter x 1mm Thick. Detects 10 KeV Standard. Available down to 2 KeV upon request. (Figure 1) BGS-501 Low to Intermediate Energy Gamma & X-ray. 2'' Diameter x 1mm Thick. Detects 10 KeV Standard. Available down to 2 KeV upon request. BGS-1 General Purpose area monitor equivalent to PGS-3. 1'' Diameter x 10mm Thick. (Figure 1) BGS-101 Spot Probe for Low Energy Gamma & X-Ray. 10mm diameter x 1mm Thick. Detects 10 KeV Standard. Available down to 2 KeV upon request. (Figure 3) BGS-10155 Spot Probe for Low to Intermediate Energy Gamma & X-Ray. 10mm diameter x 2mm Thick. (Figure 3) BGS-150 High Sensitivity for pipe or plume monitor. 10mm Diameter x 50mm Thick. Long thin probe 0.9''diameter. BGS-50L Very high sensitivity, equal to 4'' NaI(Tl) probe. 50mm Diameter x 50mm Thick. 2.5'' diameter. BGS-100 100cm2 surface monitor, Low to Intermediate energy Gammas plus Beta. 100mm2 Diameter x 1mm Thick. Detects 10 KeV Standard. Available down to 2 KeV upon request. (Figure 4)

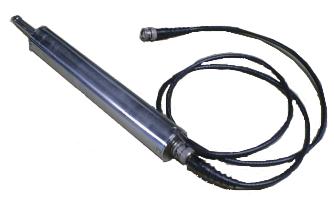

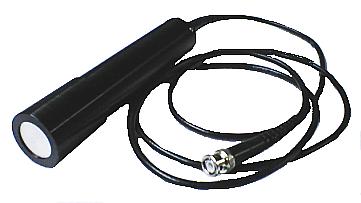

Figure 1     Figure 2     Figure 3     Figure 4
