LIQUID SCINTILLATION COUNTING SYSTEM

Model # SSS-12

FEATURES: SYSTEM SAME AS SSS-11 EXCEPT: USES LIQUID SCINTILLATION INSTEAD OF WELL COUNTING HAS LIGHT SEAL IN CLOSURE TO PREVENT STRAY LIGHT EFFECT ON PHOTOMULTIPLIER TUBE HAS INTERLOCK IN CLOSURE WHICH AUTOMATICALLY CUTS OFF VOLTAGE SUPPLIED TO PM TUBE WHEN SHIELD IS OPENED ACCEPTS A VARIETY OF SAMPLE SIZES AND SHAPES UP TO 2'' DIA. X 3'' HIGH

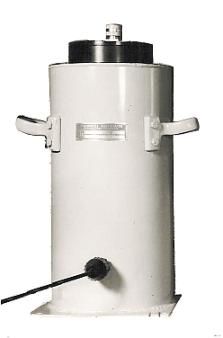

Figure 1: SSS-12

SPECIFICATIONS:

• Sample: Test tubes up to 21/32'' dia.; or beakers, flasks, planchets, etc. up to 2'' dia. x 3'' high.
• Shielding: 2'' lead minimum in all directions.
• Power Requirements: HV 800-1300 V regulated.
• Connectors: HV and signal output MHV low noise teflon insulated. Also may be matched to standard electronic equipment.
  BNC Connector Optional.
• Includes: MODEL LS-22 Shield.
                     MODEL SD-6 Liquid Scintillation Probe.


Schematic of SSS-12
