FEATURES:
- LIGHT WEIGHT
- ONE HAND OPERATION (CLEVER PROBE HOLDER)
- NO RANGE SWITCHING
- DETACHABLE PANCAKE PROBE
- BUILT-IN SONALERT
- ANTI-SATURATION CIRCUIT

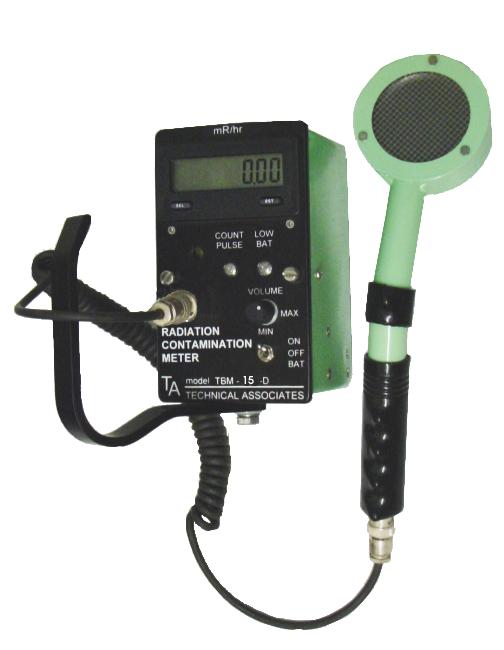

DESCRIPTION: Small Digital Ratemeter with
separable 2'' diameter pancake probe. Reads out in mR/hr (Optional
µ Sv/h or cpm, cps. Thin probe window is recessed and protected
by sturdy stainless steel grill. Instrument will see alpha, beta and
gamma radiation. Anti-saturation circuit will not fall below full
scale in high fields. Tested to 100 R/hr. Sonalert gives audible rate
indication.
APPLICATION: Its small size, light weight,
separable probe and large detector area make this a very useful monitor
for surveying bench tops or checking hands, clothes and fingertips
for almost any radioactive contamination.
See ``Beta Pancake Response'' specification
(BETA PANCAKE RESPONSE)
SPECIFICATIONS:
- Read-out: Rugged 6 digit display.
- Ranges: 0.01 to 200 mR/hr, no range switching. (0-500,000 cpm)
- Linearity: +/- 15% of full scale with pulse generator.
- Battery Test: Push button.
- Audio: Sonalert.
- Two Time Constants: Fast & Slow (each is user programmable) 0 to 90% of final reading.
- Setable: 2 sec to 99 seconds.
- Detector:
T-1190 2'' diameter (5cm) ``pancake GM'' tube. Plateaus: 150V <10% / 100V
Window Diameter: 1 3/4''; 4.5 cm. Area 16 cm²
Window Thickness: 1.5 mg/cm2.
Quench Gas: Halogen for long life. Deadtime: 70 µ sec Max
Background: Typical 50 cpm. Thin profile of tube (13mm) gives
low background.
Efficiency: 100% for all betas and alphas that have sufficient
energy to penetrate the thin window.
- Physical Dimensions: 3''; 7.6 cm wide
x 5 1/4'' W; 13.3 cm long x 2 1/4''; 6 cm thick (excluding probe,
meter, and handle).
- Temperature: -10°c to +50°c when high quality batteries are used.
- Calibration: Single master calibration
pot as well as programable calibration factor.
- Efficency: Beta C-14 > 6%, Sr-90/Y-90> 25%.
- Speaker: Built-in Audible Click for detector pulse, on-off Volume switch on panel.
- Pulse-count: Green LED.
- Alarm: Settable over entire instrument range.
- Warning: Red LED.
- Optional Serial Port: Allows real time data logging to portable PC.
- Power: 6 ``AA'' cells.
- Weight:
Electronics only: 22 oz.; 625
gm.
Total: including separable pancake probe 34oz.; 0.97 kg.
- Battery Life: 100 hours in normal operation
(Greater with Li or NiMH Battery).
|
 |
