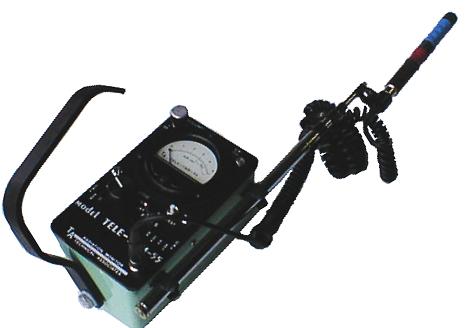

HIGH RANGE GEIGER COUNTER WITH EXTENDIBLE TELESCOPIC PROBE

EXTENDIBLE PROBE MONITOR

Model # TBM-55

FEATURES: USES THE LIGHTWEIGHT AND RUGGED TBM PACKAGE RUGGEDIZED METER READOUT EXTENDS TO 5 FEET GENERAL DESCRIPTION: The Tele-TBM-55 is a complete mid-to-high-range radiation detection system, including probe, extendible telescopic holder and electronics with ruggedized meter readout. System is operated by a 9 volt battery. Weighing only 2lbs., its lightweight, compact size permits easy transport and use.

TBM-55

SPECIFICATIONS

• Ranges: 0-5, 50, 500 mR/hr; 5, 50 R/hr.
• Energies Detected:
      Gamma: All energies above 15 KeV.
      Energy Dependence: With optional energy compensation sleeve (removable), ±20%, 80 KeV to 1.25 MeV.
•     Beta: Above 0.2 MeV.
•     Beta Efficient:
      0.3 MeV 45%
      1 MeV 75%
      2 MeV 85%
      3 MeV > 90%
• Extendible Length: to 5-1/2 feet.
• Retracted Length: 9 inches.
• Total Weight: 2 lbs.
• Option: Energy Compensation Sleeve.
• Replacements: Reasonably priced replacement parts are readily available from T/A:
      - Extendible Probe Holder
      - Coil Cord
      - GM Tube T-1216
      - GM Tube T-1214
