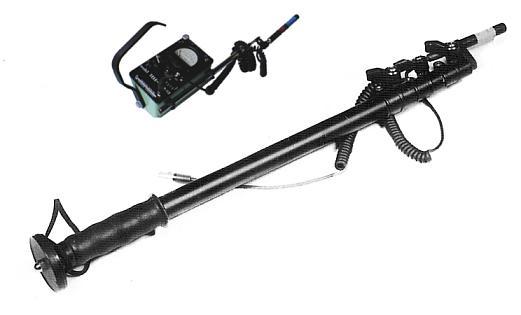

HIGH RANGE GEIGER COUNTER WITH EXTENDIBLE TELESCOPIC PROBE

High Range Model Tele-TBM-55HR to 1000 R/hr

Model # Tele-TBM-55HR

FEATURES: USES THE LIGHTWEIGHT AND RUGGED TBM PACKAGE WAND 6 OUNCES EXTENDS TO 5 1/2 FEET PROBE 24 OUNCES EXTENDS TO 10 1/2 FEET RUGGEDIZED METER READOUT DESCRIPTION: The TBM-55HR is a complete mid-to-high-range radiation detection system, including probe, extendible telescopic holder and electronics with ruggedized meter readout. System is operated by a 9 volt battery. Weighing only 3-1/2 lbs. including extendible probe, its' lightweight, compact size permits easy transport and use. For use up to 5-1/2 feet extension, the 6 oz. ``wand'' is used. To extend the full 10-1/2 feet the extension is added, still totaling only 24 oz. for the total probe.

TBM-55HR

• Ranges: 0-0.1; 1; 10; 1,000 R/hr.
• Energies Detected  Gamma: All energies above 15 KeV.     Energy Dependence: With Optional energy compensation sleeve (removable), ±20%, 80 KeV to 1.25 MeV.
  Beta: Above 0.2 MeV.
  Beta Efficient:
      0.3 MeV 45%.
      1 MeV 75%.
      2 MeV 85%.
      3 MeV >90%.
• Extendible Length: To 10-1/2 feet.
• Retracted Length: 2 1/2 feet.
• Total Weight: 3 1/2 lbs.
• Option: Energy Compensation Sleeve.
• Replacements: Reasonably priced replacement parts are readily available from T/A:
      - Extendible Probe Holder.
      - Coil Cord.
      - GM Tube T-1216.
      - GM Tube T-1225.
