FIRST RESPONDERS RADIATION DETECTION EMERGENCY KIT

Model # TBM-6SPE

FEATURES:

FIVE SEPARATE DETECTORS

DETECTS ALPHA, BETA, GAMMA, X-RAYS, & NEUTRONS

EASY SWITCH TO CHANGE FROM INTERNAL TO EXTERNAL PROBES

LIGHTWEIGHT - FITS INTO A BRIEFCASE

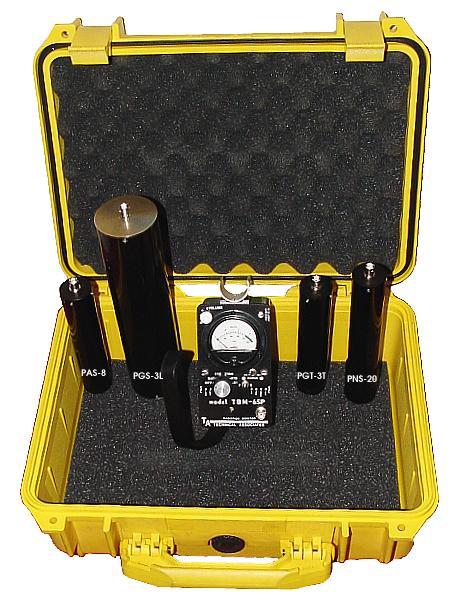

DESCRIPTION: The TBM-6SPE features an internally mounted 2 inch Beta pancake GM detector (T-1190) with window looking downward from bottom of case and four external probes for detection of Alpha (PAS-8), low energy Gamma (PGS-3T), all Neutrons (PNS-20T), plus the Gamma Search Probe (PGS-3L). A sliding shield protects pancake detector when not in use. This system is half the weight of other systems.

SPECIFICATIONS:
TBM-6SPE Image
CE Image
Figure 1: TBM-6SPE

Meter: Rugged, recessed 2-1/2'' meter.
Range Switch Positions: Off; Battery Test; X1; X10; X100; X1,000.
Detector Switch (Toggle): Internal (pancake), External (4 Additional Probes).
Time Constant Switch: Fast, Slow (approx. 2 & 11 sec.).
Ranges: 4 linear for each detector: 0-500; 5,000; 50,000; 500,000 cpm for external and 0-0.15; 1.5; 15; 150 mR/hr. for internal detector.
Optional: Addition scales and overlays available: Sieverts, etc.
Internal Detector: T-1190 2'' O.D. Beta Pancake Geiger for internal.
Internal Detector Efficiency:

BETA Pancake C¹⁴ 40% Exclusive of any geometry factor.

P³² 98% Exclusive of any geometry factor.

BETA Pancake	C¹⁴	40%	Exclusive of any geometry factor.
	P³²	98%	Exclusive of any geometry factor.

^T_A TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net www.tech-associates.com

FIRST RESPONDERS RADIATION DETECTION EMERGENCY KIT

Model # TBM-6SPE

SPECIFICATIONS (Continued):

[

External Detectors:	PAS-8	PGS-3T	PGS-3L	PNS-20T
Detects:	Alpha	Low Energy Gamma.	Gamma Search Probe.	Fast & Slow Neutrons.
¹Efficiency:	Alphas above 5MeV 20-40% 2Pi.		1,000,000 cpm/mR/hr	20 cpm per thermal neutron/cm²/sec
I¹²⁵	-	87%		-
Co⁵⁷	-	78%		-
Tc^99m	-	75%		-
Cs¹³⁷	-	30%		-

External Detector Description:

PAS-8: Alpha Scintillation Probe with 1" diameter x 0.8 mg/cm squared window. For use wherever a high efficiency, low background Alpha detector is indicated.
PGS-3T: Low Energy Gamma Scintillation Probe, 1" diameter x 1mm NaI(Tl) crystal protected by a 5 mil. aluminum window, sees X-rays and Gammas > 10KeV and Betas > 100KeV.
PGS-3L: Gamma Scintillation Search Probe utilizing a highly gamma sensitive crystal (NaI(Tl)). 2'' diameter x 1'' long hermetically sealed crystal optically coupled to photomultiplier tube. Gamma sensitivity is 100 times greater than GM tubes Will also detect X-rays > 25KeV. Sensitivity of the PGS-3L is in the order of 1,000,000 cpm per mR/hr.
PNS-20T: Fast & Slow Neutron Scintillation Probe. The n-p reaction is used to measure energy deposited by Fast Neutrons. Thermal Neutrons are detected by means of the Boron n-Alpha reaction. Probe delivers approximately 20 cpm per neutron/cm²/second and requires a 900 volt supply. The probe is 8" long x 1.5" in diameter. It is completely insensitive to Gammas in fields below 10 R/hr.
T-1190: Internal Pancake GM detector

¹⁴

Calibration: Separate master Cal Pots for internal vs external detectors.
Power: 9V Transistor battery (Eveready E1220 or equivalent). Battery life - 100 hrs. normal operation.
Dimensions of Meter: 3'' Wide x 5-1/4'' Long x 2-1/4'' Deep.
(7.6 cm x 13.3 cm x 6cm).
Total Weight: 15 lbs.
Shipping Weight: 30 lbs.

¹Excluding Geometry
