LOW RANGE ION CHAMBER TBM

Model # TBM-ICLR

FEATURES: MEASURES DOWN TO BACKGROUND DOSE RATE & TOTAL DOSE READ OUT MEASURES LOW ENERGY GAMMAS AND X-RAYS DIGITAL READOUT: 8 digit-rate, 8 digits integrate SMALL LIGHTWEIGHT 26 oz. TBM PACKAGE FLAT RESPONSE - FREE AIR ION CHAMBER SEES AXIALLY BELOW 5 KEV GAMMA OR X-RAY SEES ALPHA, BETA, GAMMA, X-RAY FAST RESPONSE WIDE RANGE: 0.01 mR/hr to 1 R/hr APPLICATION: Whenever a fast, sensitive ion chamber instrument is needed, the TBM-ICLR is the latest in a series. The TBM-ICLR ion chambers are now more sensitive. Based on newest more stable, essentially drift-free electrometer technology.

TBM-ICLR

DESCRIPTION: The TBM-ICLR consists of a 5'' dia x 12'' long air ion chamber coupled to a stable solid state MOSFET input electrometer with built in A to D converter to read out directly in mR/h or mR. Rate range is 0.01 mR/h to 1 R/h in a single range. Dose range is 0.001mR - 10R in a single range. 430 mg/cm² graphite lined methacrylate walls accurate ``air equivalence.'' Thin (0.5 mg/cm²) Mylar window allows high sensitivity readings for alpha and for low energy beta such as C¹⁴ and low energy Gammas and X-rays, in addition to higher energy Betas and Gammas.

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com

LOW RANGE ION CHAMBER TBM

Model # TBM-ICLR

SPECIFICATIONS:

• Detector: Free Air ion chamber 5'' dia x 12'' long. Internal volume 3 liters.
• Wall & Cap: Methacrylate, graphite lined 430 mg/cm² walls and 540 mg/cm² cap.
• Window: 4'' dia. x 0.5 mg/cm² Mylar.
• Readout: LCD 8 digits.
• Indicator Lamp:
      Green LED 100 pulses/sec per mR/h.
      Red Over-range Indicator.
• Range:
      Rate 8 digit 0.01 mR/h to 1 R/h in a single range.
      Integrate 8 digits 0.001 mR to 10 R in a single range.
• Electrometer: Solid State MOSFET input.
• Electronics: A-D converter LCD drivers.
• Batteries:
      20 ea. (Button) NEDA CR-1220 - shelf life 7 years.
      6 ea. (AA) NEDA 15A - 1000hr.
• Dimensions: 14'' x 12'' x 5.5'' including handle.
• Weight: 2.2 kg. complete with batteries.
• Options: Readout in Si units: Sv and Sv/h.

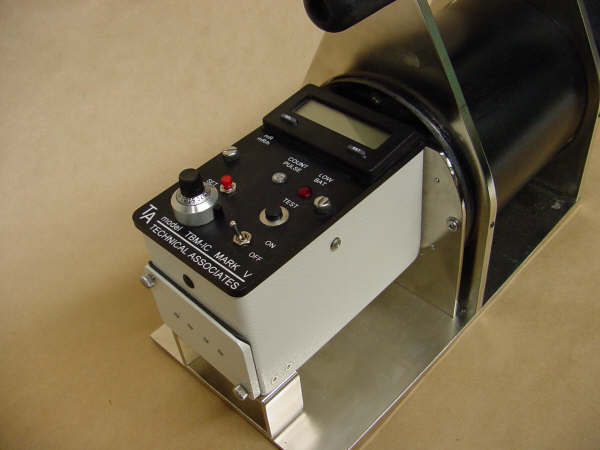

Figure 2: TBM-ICLR
