ION CHAMBER TBM

Model # TBM-IC-MARK V

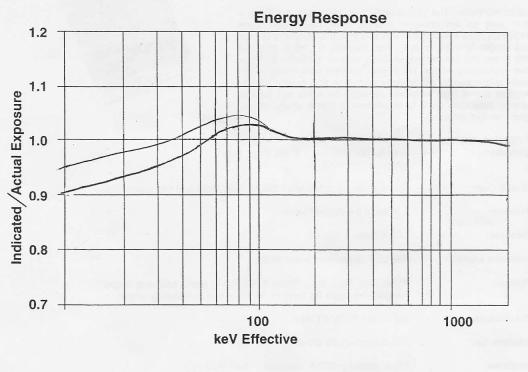

FEATURES: DIGITAL READOUT: 8 digit-rate, 8 digits integrate DOSE RATE & TOTAL DOSE READ OUT SMALL LIGHTWEIGHT 26 oz. TBM PACKAGE FLAT RESPONSE - FREE AIR ION CHAMBER SEES AXIALLY BELOW 5 KEV GAMMA OR X-RAY SEES ALPHA, BETA, GAMMA, X-RAY FAST RESPONSE WIDE RANGE: 0.1 mR/hr to 9.999 R/hr OPTIONAL X-RAY COMPLIANCE SLEEVE APPLICATION: Whenever a fast, sensitive ion chamber instrument is needed, the TBM-IC-MARK V is the latest in a series. The TBM-IC-MARK V ion chambers are now smaller and lighter. Based on newest more stable, essentially drift-free electrometer technology.   DESCRIPTION: The TBM-IC-MARK V consists of a 2.5'' dia x 3.5'' long air ion chamber coupled to a stable solid state MOSFET input electrometer with built in A to D converter to read out directly in mR/h or mR. Rate range is 0.1 mR/h to 9.999 R/h in a single range. Dose range is 0.01mR - 99.9R in a single range. 180 mg/cm2 graphite lined methacrylate walls accurate ``air equivalence.'' Thin (0.5 mg/cm2) Mylar window allows high sensitivity readings for alpha and for low energy beta such as C14 in addition to higher energy Betas, Gammas and X-rays.

TBM-IC Mark V

^T_A  TECHNICAL ASSOCIATES
7051 ETON AVENUE * CANOGA PARK, CA 91303
TELEPHONE (818) 883-7043 * FAX(818) 883-6103
e-mail: tagold@nwc.net     www.tech-associates.com

ION CHAMBER TBM

Model # TBM-IC-MARK V

SPECIFICATIONS:

• Detector: Free Air ion chamber 2.5'' dia x 3.5'' long. Internal volume 260 cc
• Wall & Cap: Methacrylate, graphite lined 180 mg/cm² walls and 540 mg/cm² cap. Optional 1g/cm² walls.
• Window: 2.0'' dia. x 0.5 mg/cm² Mylar.
• Readout: LCD 8 digits.
• Indicator Lamp: Green LED 10 pulses/sec per mR/h
  Red Over-range Indicator
• Range:
      Rate 8 digit 0.1 mR/h to 9.999 R/h in a single range.
      Integrate 8 digits 0.01 mR to 99.9R in a single range.
• Electrometer: Solid State MOSFET input.
• Electronics: A-D converter LCD drivers.
• Batteries:
      10 ea. (Button) NEDA CR-1220 - shelf life 7 years.
      6 ea. (AA) NEDA 15A - 1000hr.
• Dimensions: 5-1/2'' x 3-1/2'' x 8'' including handle.
• Weight: 26 oz. complete with batteries.
• Options: Readout in Si units: Sv and Sv/h.
• X-Ray-SLV is optional X-Ray compliance sleeve with 10cm² aperture.

Portable ION Chambers
